OILFIELD FREEZE UNITS
Product

OILFIELD FREEZE UNITS

OVER 15 YEARS OF MANUFACTURING & DESIGN EXPERIENCE

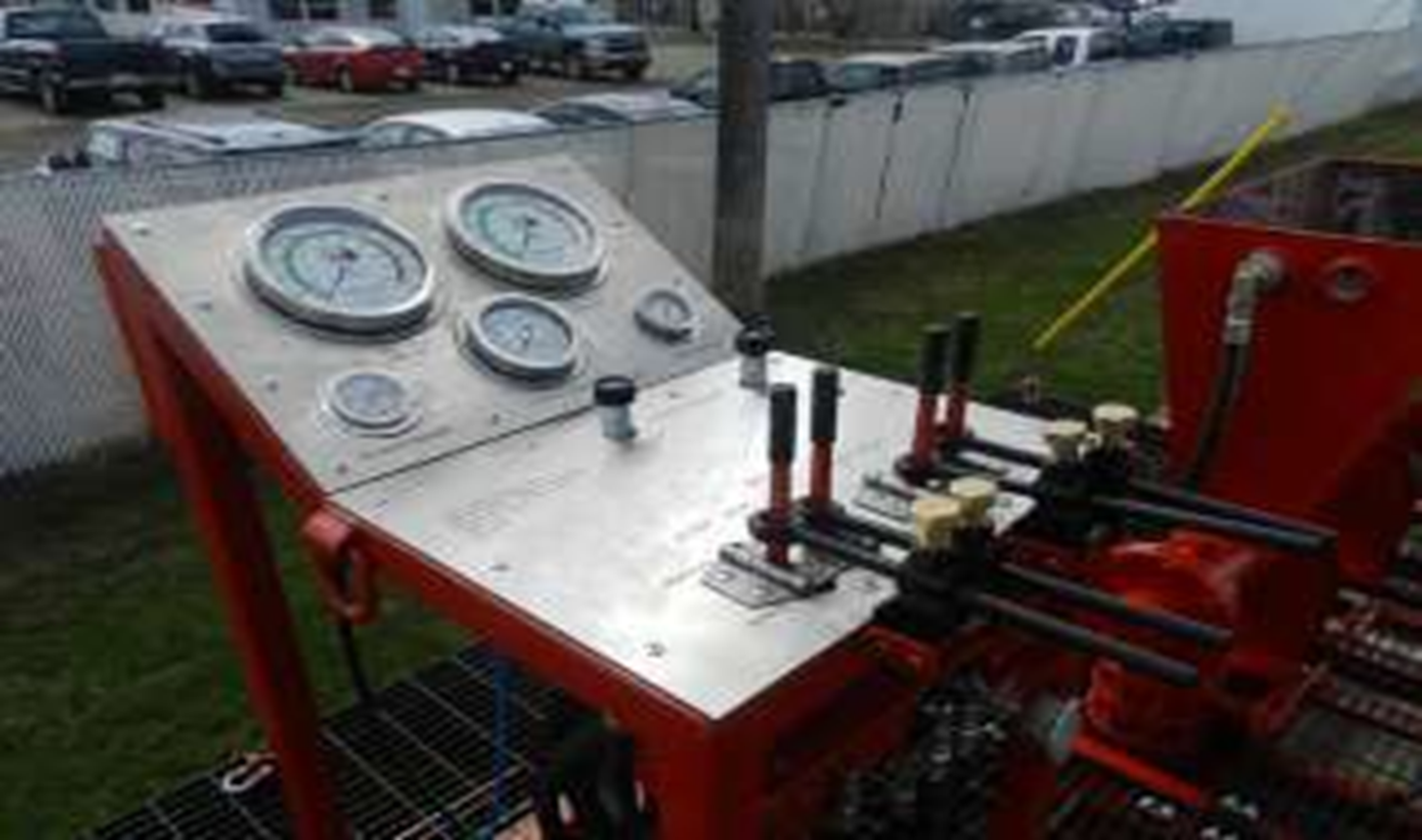

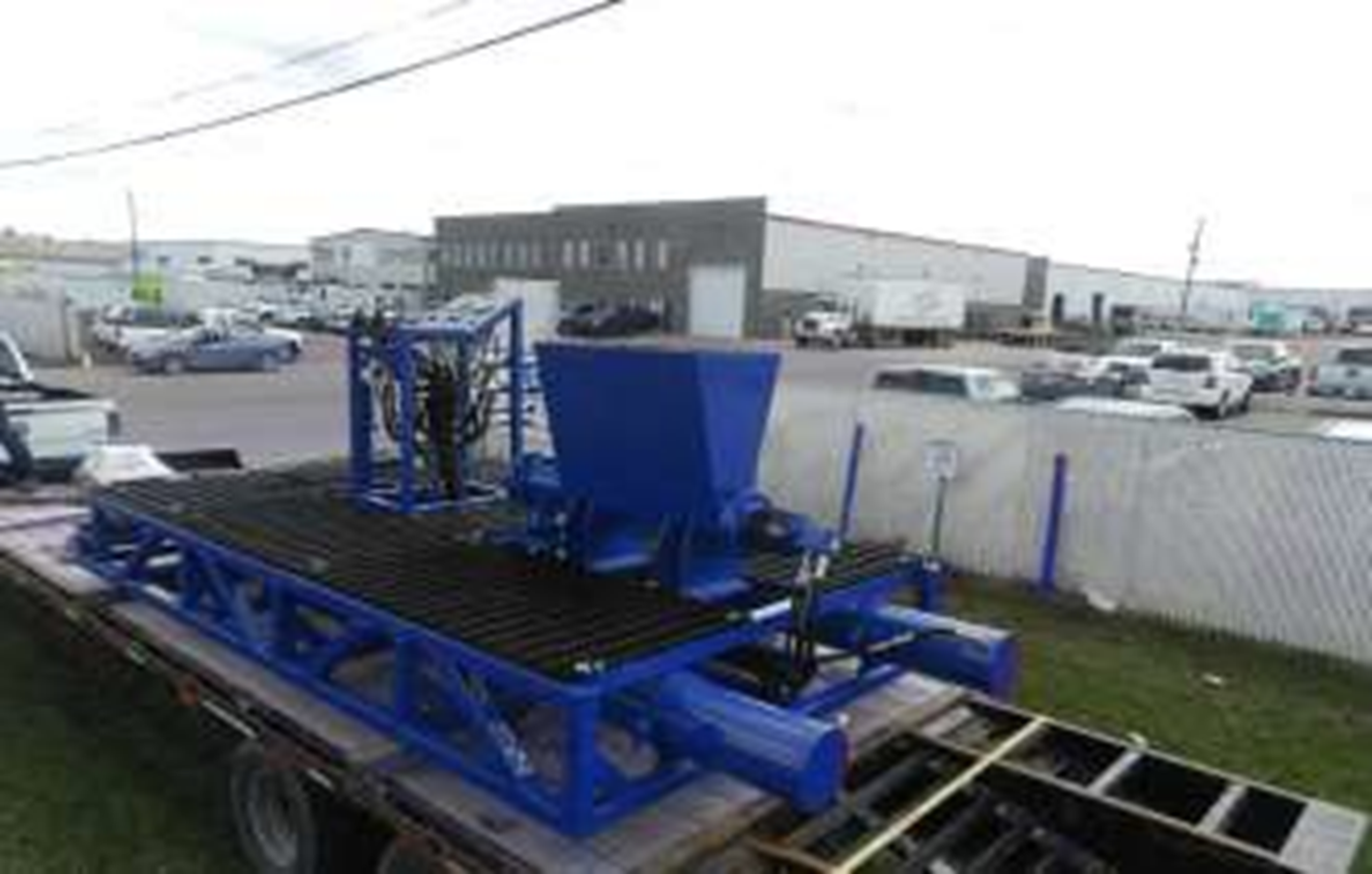

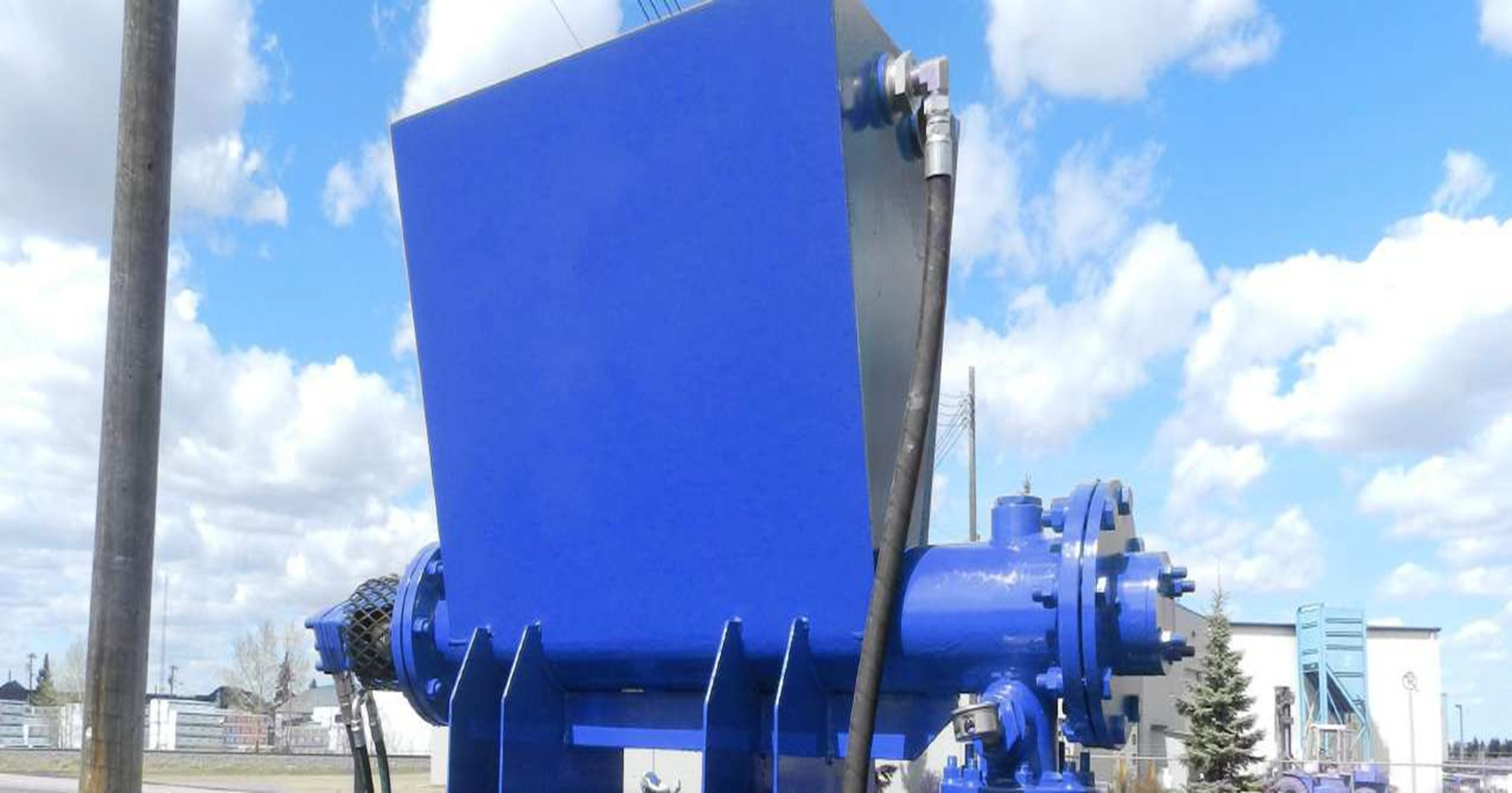

MSI manufactures and sells Cryogenic Freezing Units that are used to create a temporary Freeze Plug inside the well; with low (example 500 PSI) to high wellbore pressure (up to 15,000 PSI). MSI Freeze units are used in situations where it’s not feasible to contain Wellbore Pressure to replace damaged equipment or to allow access to the equipment without Killing the Well. MSI Freeze Units provide an effective and safe method to create Freeze Plugs when required for the application.

  • The Freeze Unit, however, solves most of these problems with a safer, and reliable system that is cost-effective and quick.
  • Using the MSI Freeze unit, an operator can inject mud (such as a Bentonite mix) at high pressure to create a Freeze plug and use a freezing media such as Dry Ice (CO2) or liquid Nitrogen (N2) inside a Jacket around the outer surface where an Ice Plug is being created to service the well.
  • FUL – Freeze Unit for Land Use
    • MSI Freeze Unit packages can be customized as per application requirements given by the end-user.
  • FUO – Freeze Unit for Offshore Use
    • MSI Offshore Freeze Units are manufactured to optimize weights and footprint for offshore platforms. For Offshore application, specify minimum available Crane Lifting Capacity and Height reach.
  • There are several ways to create a Jacket on the outer surface by using coil lines with liquid N2, a wrap-around jacket with CO2, or a canister style system with liquid N2, utilized according to application requirements
    • Can be custom designed as per client requirements

MSI is a well-known manufacturer of Oilfield Freeze Units with pressure capacities up to 15,000 PSI. MSI Freeze units have proven to be reliable in creating a temporary Freeze Plugs inside Tubing, Drill Pipe, or Casing of up to 36” in diameter. MSI can also provide training and start-up crew with Freeze Equipment. MSI Oilfield equipment is renowned for its quality and efficiency. The standards of building in all equipment are rigorously high, which can contribute to great consistency and generally well-built products.
