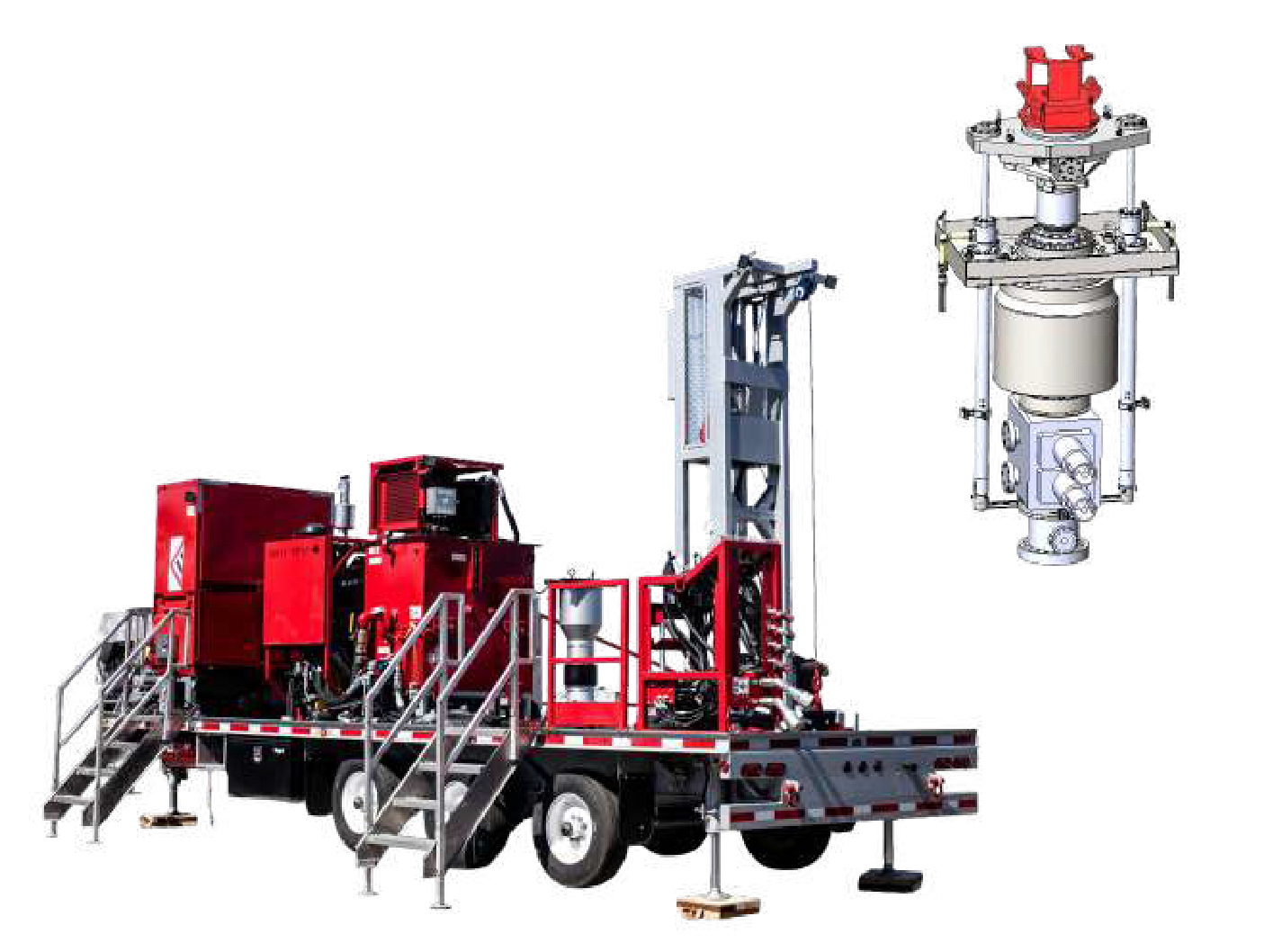

Snubbing is a safe method for running, retrieving , and inserting tubulars, BHAs, and tools into a well under pressure without killing the well using fluid weight. MSI is a leading manufacturer of compact snubbing units designed for safe, efficient well intervention. These units are highly cost-effective and feature a quick and easy rig-up, allowing setup within minutes. Compact Snubbing Units are rig-assist services suitable for low- and medium-pressure oil and gas wells.

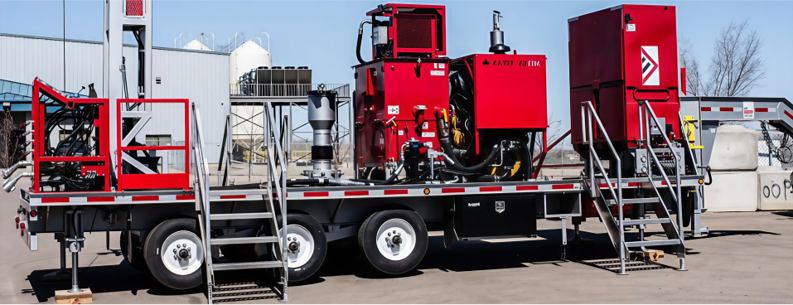

- Mobile truck–mounted units
- Trailer-mounted units
- Heli-portable skid units
- Sea container–mounted units

- Jack cylinders with built-in hydraulic top and bottom speed cushions
- Wear bands and adjustable speed control valves
- Safe slip interlock system (mechanical or hydraulic)
- Optional wireless remote control panel
- Quick Bowen union with API flange for fast rig-up connections
- Optional union lubricators (2 ft, 4 ft, 6 ft)

- RS-100 with hanger flange: up to 1,200 psi surface pressure
- Annular BOP with hanger flange: up to 5,000 psi surface pressure

- Can be custom-designed to meet client requirements. Units are available for lease or purchase.

JACK SIZE	40K	75K	120K	150K	TUBING SLIP OPTION	ROTARY TABLE
LIFT	42,000 lbs	75,000 lbs	117,000 lbs	150,000 lbs	MSI SLIPS CAVIN C SPIDER OIL COUNTRY SPIDER HYDRA RIG BOWL CUSTOM DESIGN AS PER CLIENT	1,500 FT-LBS 2,200 FT-LBS 2,800 FT-LBS 4,800 FT-LBS 10,000 FT-LBS
FORCE	18,500 daN	33,300 daN	52,000 daN	66,700 daN
SNUB	23,000 lbs	45,000 lbs	60,000 lbs	65,700 lbs
FORCE	10,200 daN	20,000 daN	26,500 daN	29,000 daN
