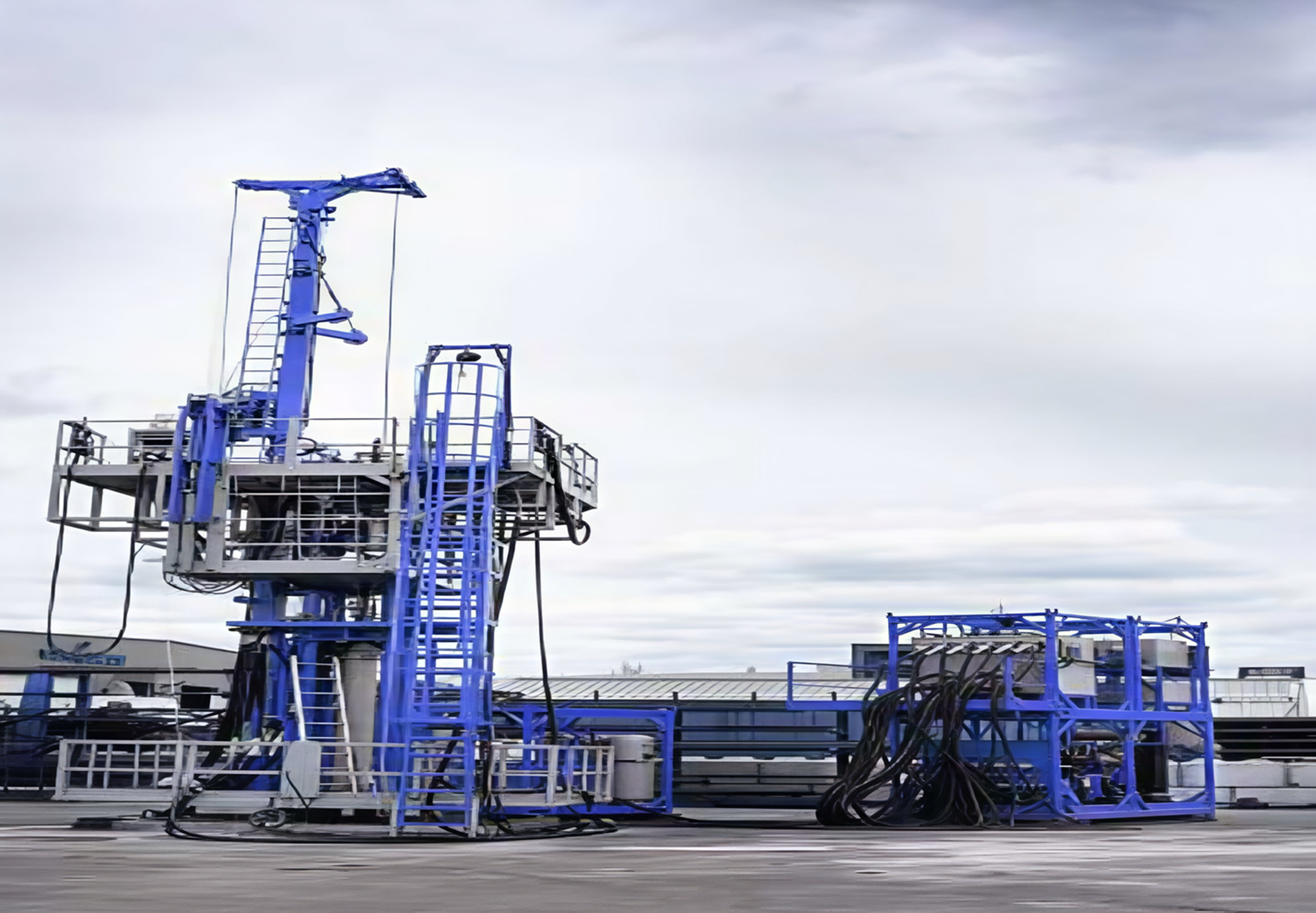

HYDRAULIC WORKOVER SNUBBING UNIT – Manifold Systems International

OVER 15 YEARS OF MANUFACTURING & DESIGN EXPERIENCE

To perform HWO services on medium to high-pressure wells. These services are mainly used in offshore applications where wells are not under pressure during workover operations.

Snubbing is a safe way of :
- Running
- Retrieving
- Inserting Tubulars.
BHAs & tools can perform and avoid potential damages
Onshore or offshore well intervention application
Auxiliary Equipment :
- Access ladder
- Tool container
- HPU
- Generator
- Air compressors
- Gravel pack blender
- Skidding unit
Safety equipment :
- RS-100 Stripping Head
- Hanger Flange
- Rig Rapid Escape
- Shower Unit
Quick rig up-time

Rig Assist or Stand Alone service
- Truck & Trailer mounted unit
- Sea container units
- Heli-portable skid units
Lightweight design for remote access locations
- Hydraulic catwalk
- Pipe Handling System
Complete package available for BOPs unit. And much more...

RIG ASSIST / STAND ALONE SNUBBING UNIT

JACK SIZE	150K	225K	340K	460K	STROKE	TUBING SLIP OPTION	ROTARY TABLE
LIFT	150,000 lbs	225,000 lbs	340,000 lbs	461,000 lbs	8FT 10FT 12FT 15FT 17FT	MSI SLIPS CAVIN C SPIDER OIL COUNTRY SPIDER SPIDER HYDRA RIG BOWL CUSTOM DESIGN	PASSIVE 2,500 FT-LBS 4,800 FT-LBS 8,000 FT-LBS 12,000 FT-LBS 15,000 FT-LBS 22,500 FT-LBS
FORCE	67,000 daN	100,000 daN	150,000 daN	205,000 daN
SNUB	83,500 lbs	144,000 lbs	188,000 lbs	226,000 lbs
FORCE	37,000 daN	64,000 daN	83,000 daN	100,000 daN

At Manifold Systems International FZE, we aim to gain a deeper understanding of your requirements.
Requesting a quote will assist us in steering your project in the right direction.

RIG ASSIST UNITS OR STAND-ALONE UNITS - WORKOVER

GIN POLE
CAT HEAD
WORK PLATFORM
JACK
WORK BASKET

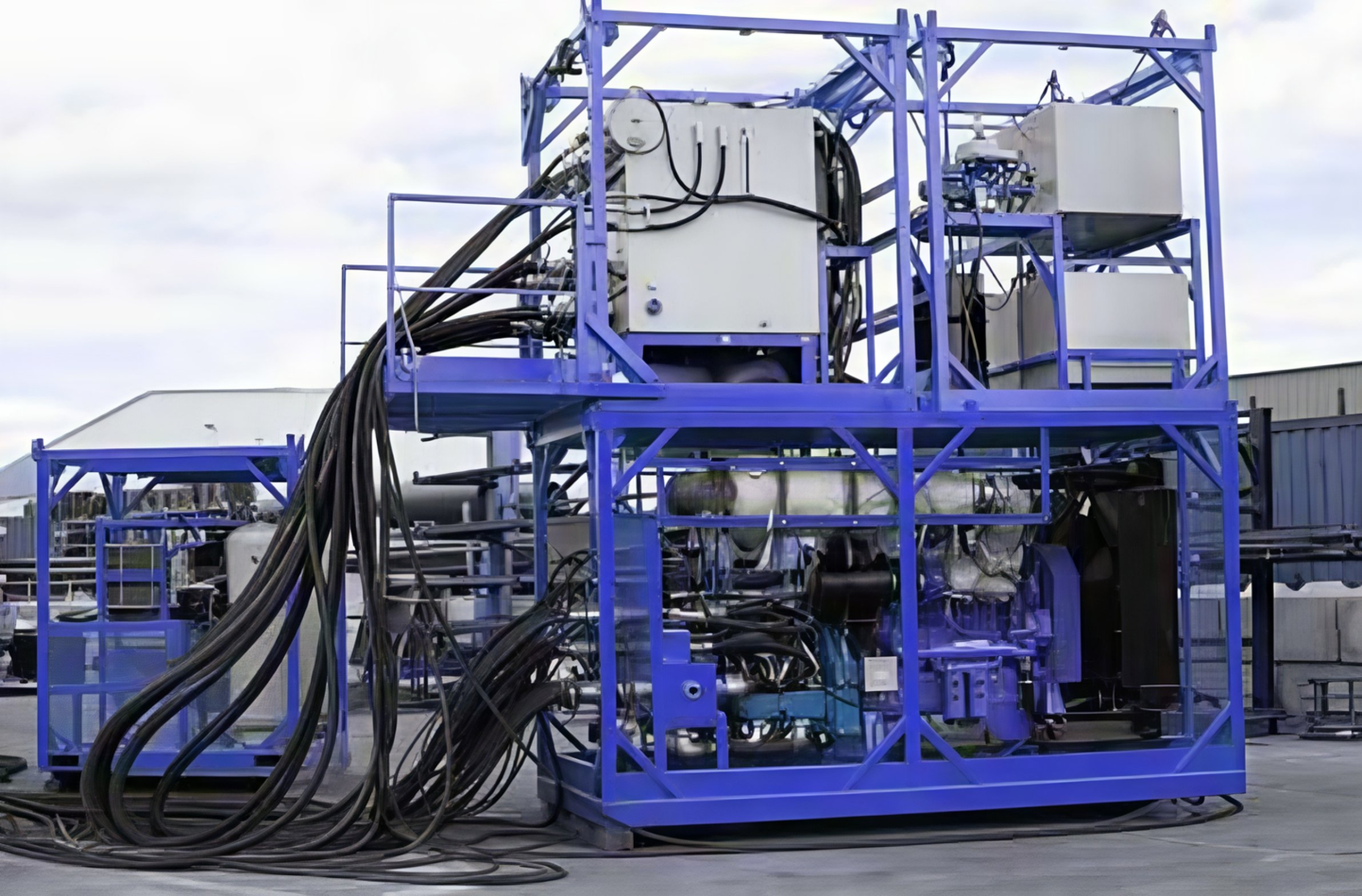

HYDRAULIC TANK SKID
FUEL TANK SKID
ENGINE SKID
VERTICAL LADDER
AIR TANK
