GRAVEL PACK BLENDER SKID
Product

GRAVEL PACK BLENDER SKID

MSI IS A LEADING DESIGNER IN OILFIELD EQUIPMENT

MSI Ground Handling Systems are available as fully automated, PLC Controlled Ground Handling Systems (GHS) for delivery of tubulars to Robotic Pipe Handlers for increased safety and efficiency when handling tubing.

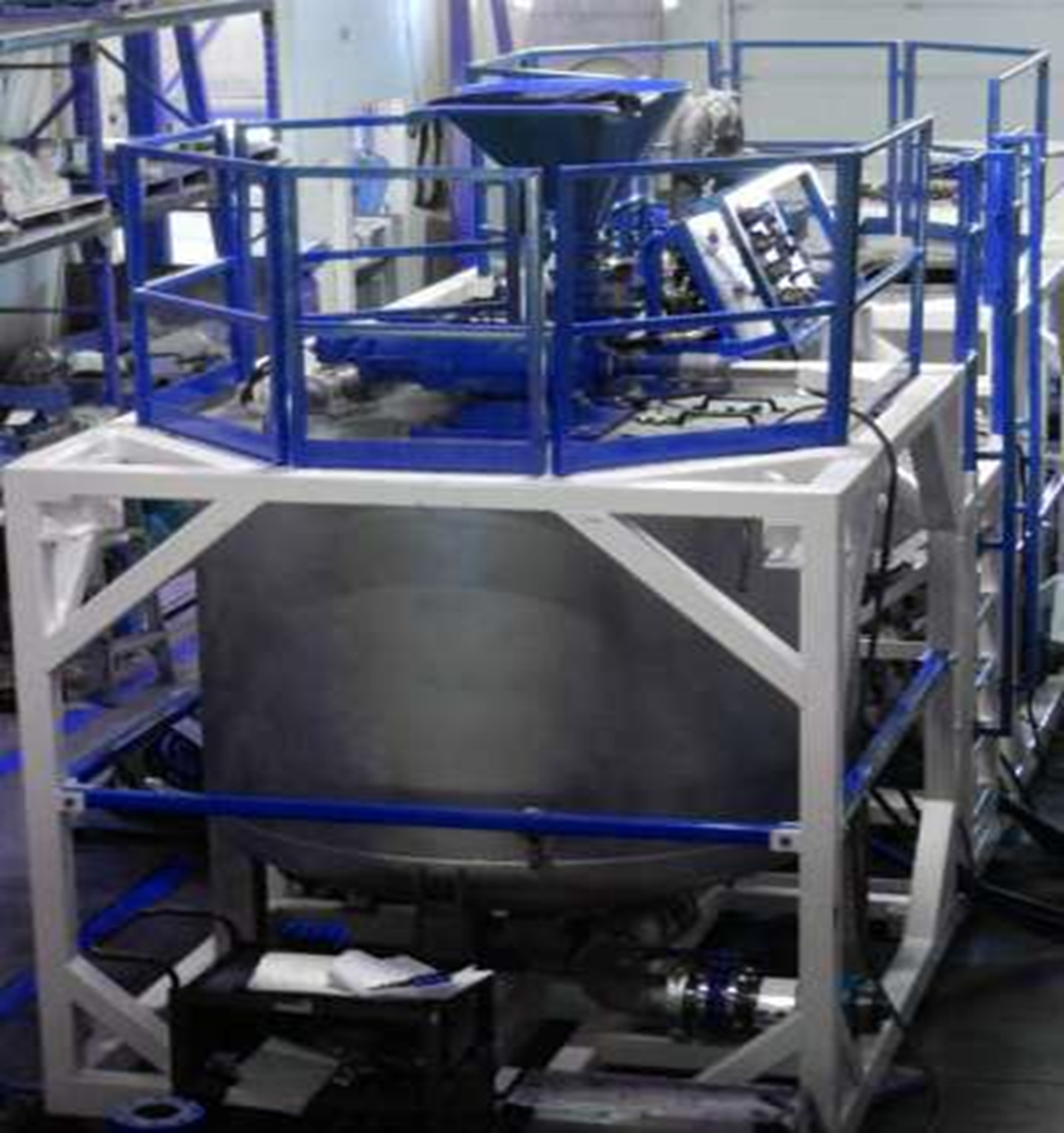

  • Portable Batch and Continuous mixing Unit designed for Gravel Pack Slurry preparation

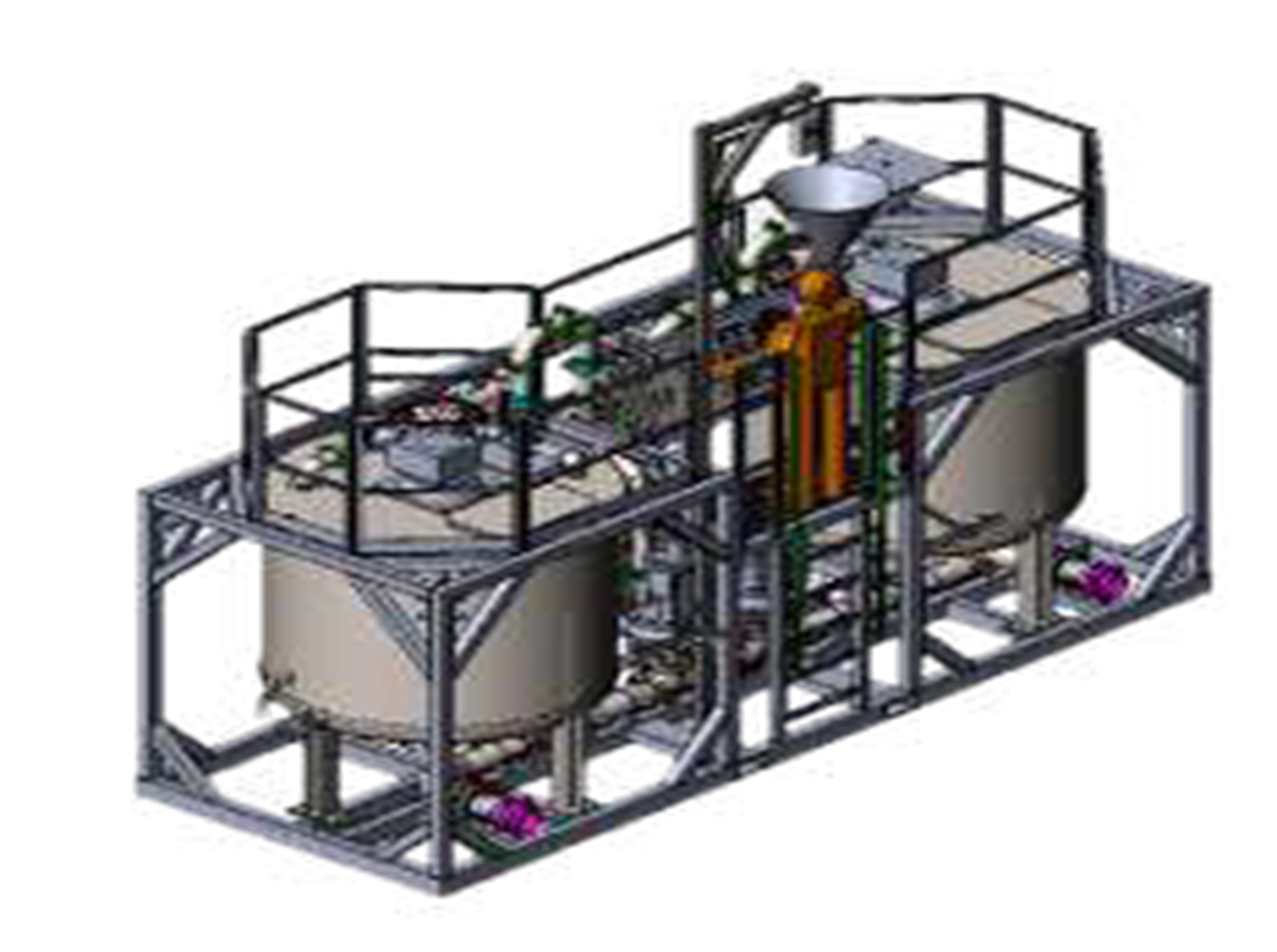

  • Two Skid Mixer, Control System & Engine Pack for Offshore tight Rig Space
  • Lifting Frame for easy transporting and hoisting (crash protection frame)
  • Two 5x6x14 centrifugal pumps for:
    • Transfer fluid from remote source into mixing tank
    • Re-circulation fluid back to same tank (continuous recirculation)
    • Mixes & transfer fluids between tanks
    • Deliver treatment fluid to suction head of a high pressure (triplex pump unit)

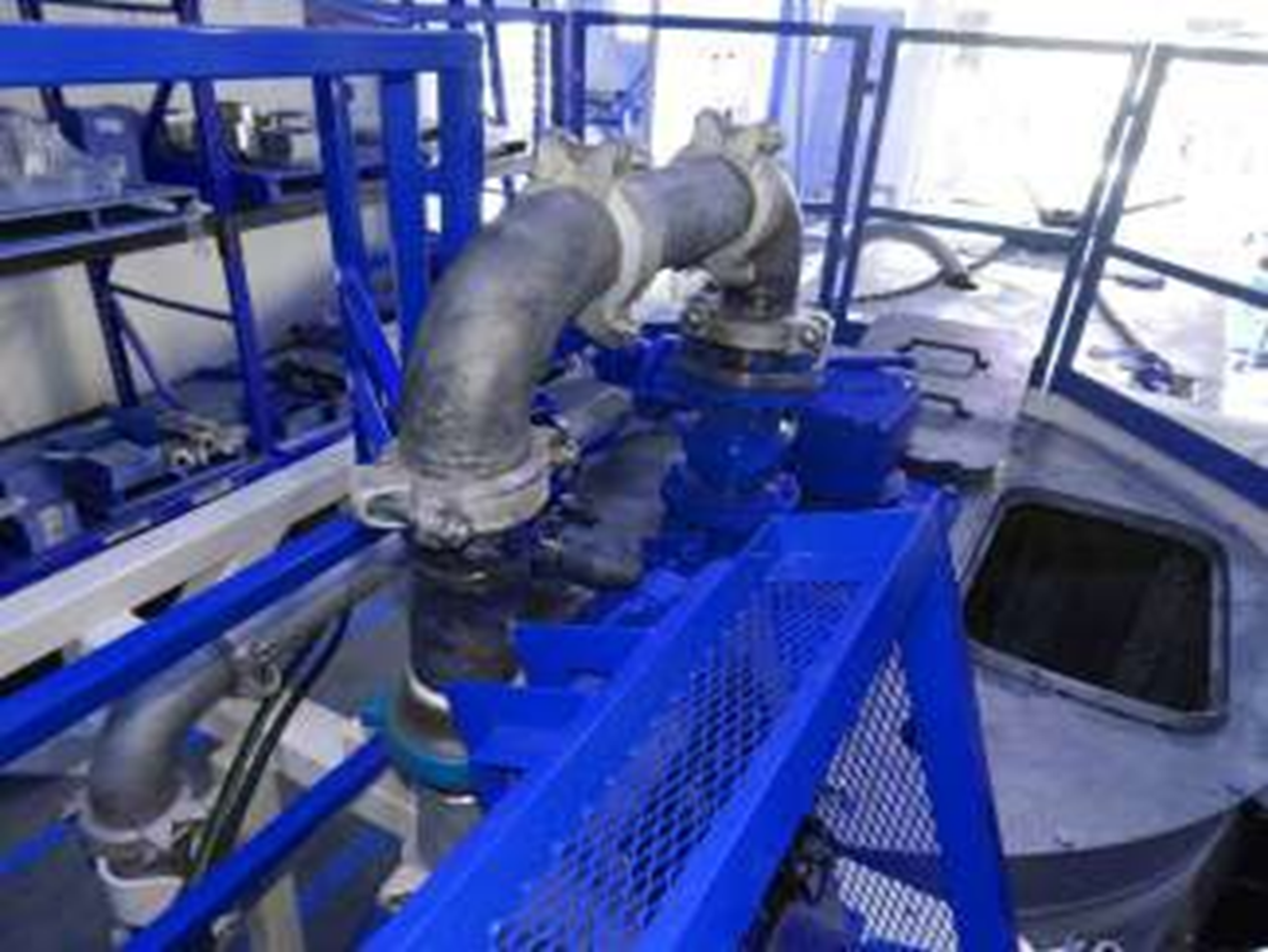

  • Stainless steel hard piping with Victaulic connection for modular piping system
  • Hydraulic driven, air start (on board hydraulic and pneumatic power)

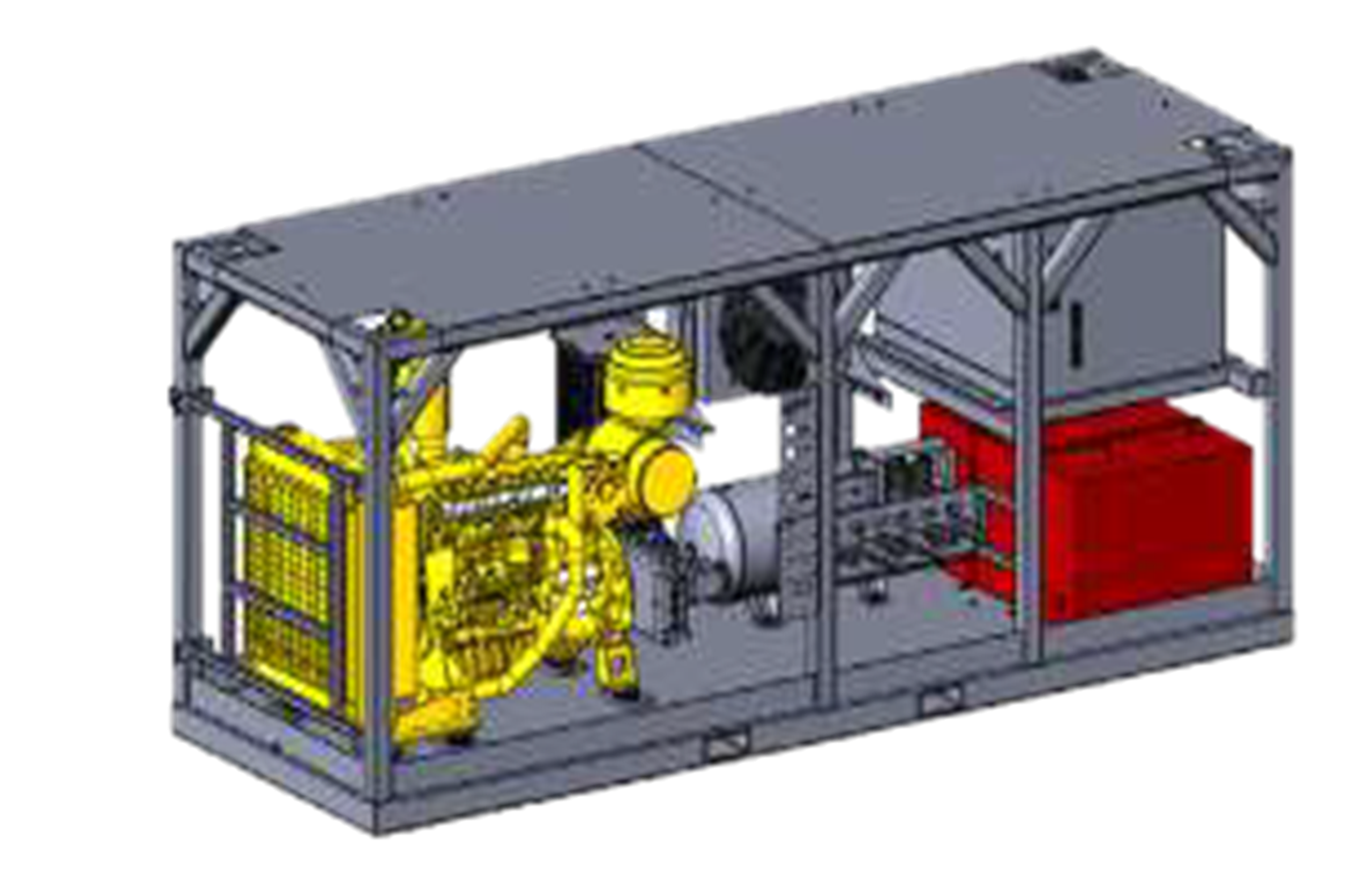

  • Direct driven hydraulic power unit by caterpillar 325 HP Diesel engine
  • Two mixing / pressurizer pumps with Nedox coating (Hydraulic driven)
  • Variable flow control on Centrifugal pump and agitator motor (dual rotation)

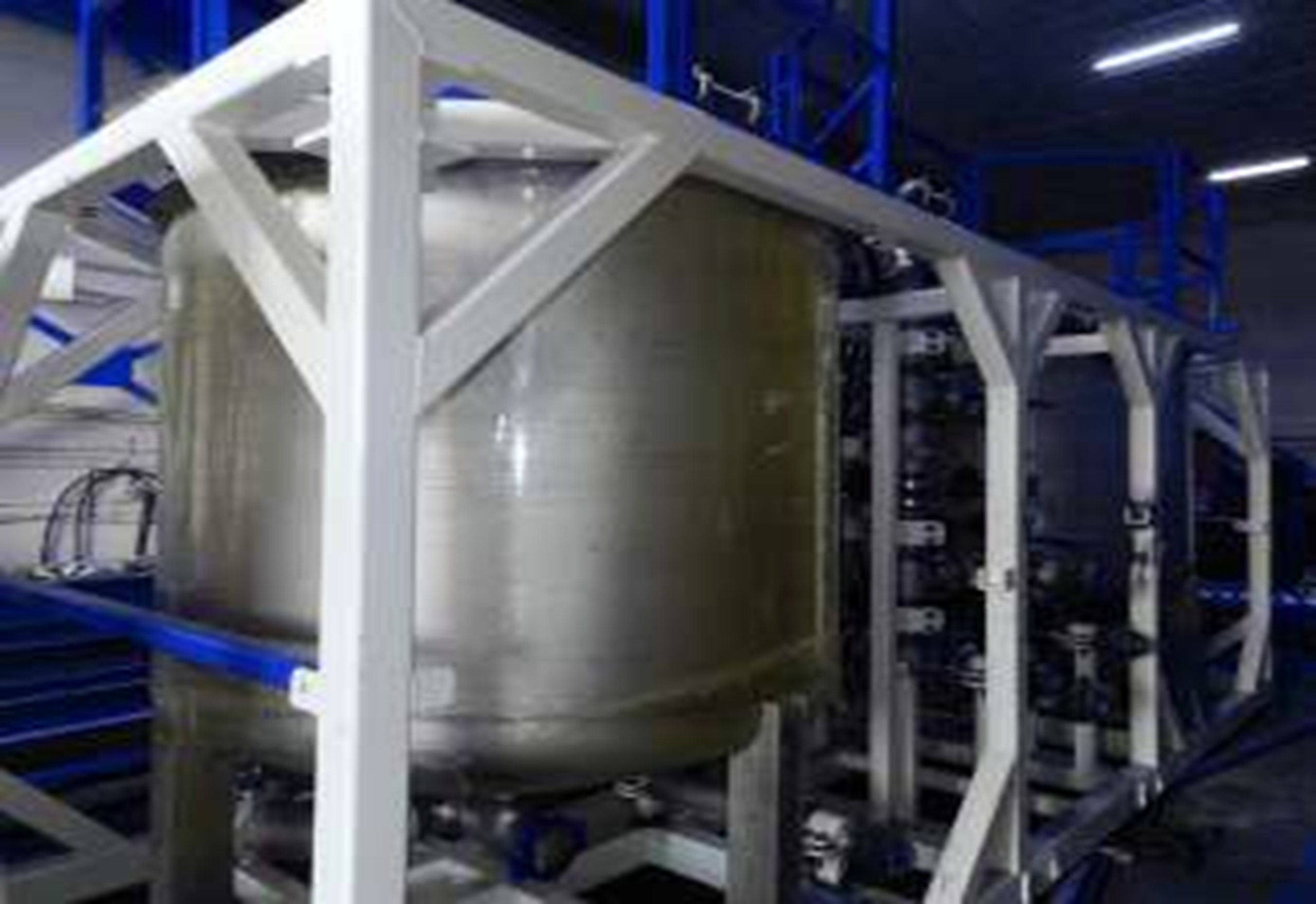

  • Self Cleaning tanks Two Stainless Steel 3 5 BBL Blending Tanks with Bottom Washout
  • Baffles for even mixing
  • Stainless Steel Piping for Direct Dry Feed in the Mixing Tanks
  • Each Tank got 1” Side outlets for sampling Material
  • 4” fig 1502 Weco Inlet Lines
    • Drilling Rigs
    • Hydraulic Workover Units
    • Sand Clean Outs
    • Service Rigs
    • Snubbing Units
    • Under-Balance Applications
    • Can be custom designed as per client requirements
