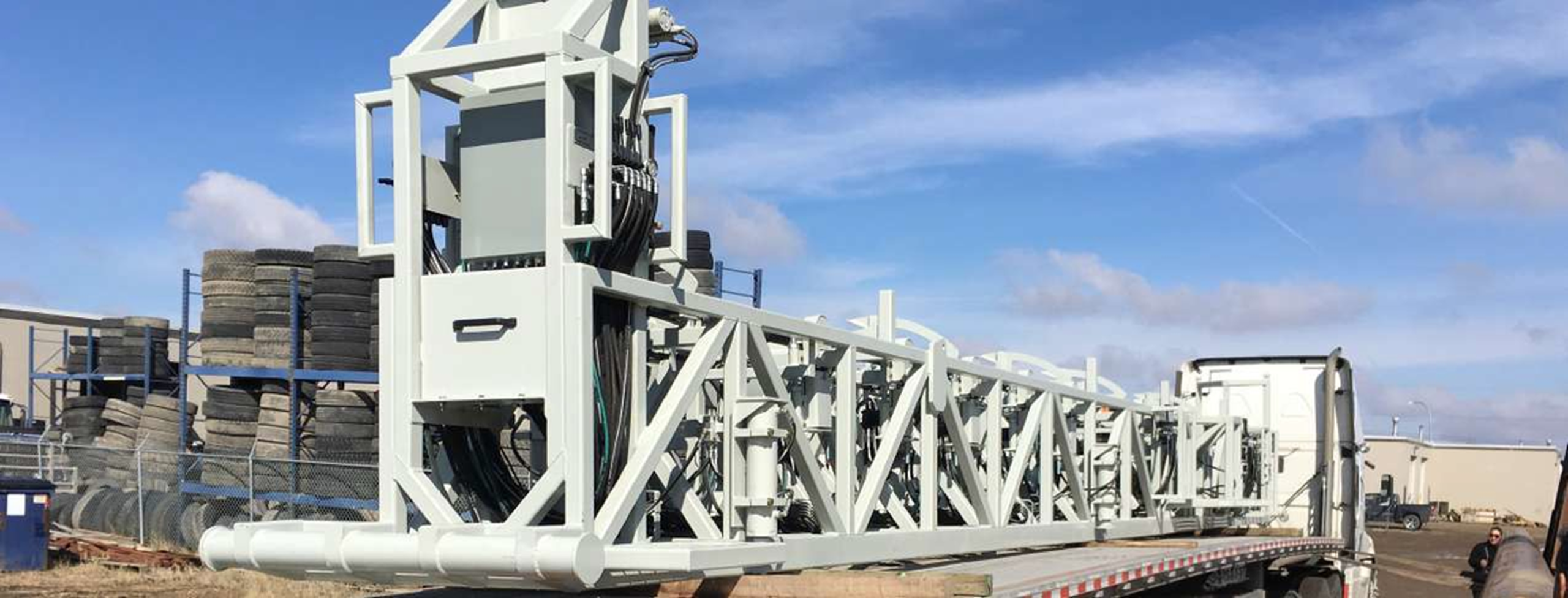

CASING JACKS

MSI Casing Jacks are hydraulic-powered, mechanically robust tubular lifting and recovery units designed for well servicing, rigless plug and abandonment (P&A), slot recovery, workover, and casing running operations. These units deliver high pulling force and configurable slip systems to handle large casing weights and sizes safely and efficiently.

High Pulling Capacity:
- Engineered to support pulling capacities ranging from 20 tons to 500 tons (configurable by model).
Modular Hydraulic Operation:
- Multi-cylinder hydraulic drive allows variable jacking speed and high torque performance.
Remote Operation Capability:
- Remote control options enhance safety by minimizing red-zone exposure.
Flexible Slip Systems
- Compatible with various slip types for pipe 2 3/8” up to 36”
Customizable Configurations:
- Mounting interfaces, flange adapters, and accessory tooling tailored to project requirements.
Enhanced Safety & Efficiency:
- Integrated controls and guarding systems improve operational safety and reduce cycle time.

Integrated controls and guarding systems improve operational safety and reduce cycle time.

Pull Capacity
- 20 tons to 500 tons (configurable)
Hydraulic Drive
- Variable speed, pump-driven hydraulic cylinders
Slip Compatibility
- Pipe OD approximately 2 3/8” up to 36”
Control System
- Remote hydraulic or operator-station controls
Safety Features
- Guarding systems and remote operation capability
Mounting/Interference
- Wellhead flange adapters or platform-mounted configurations

- Rigless Plug & Abandonment (P&A) operations
- Well servicing and workover applications
- Slot recovery and open-hole sidetrack extraction
- Casing running beyond rig hookload limits
- Auxiliary lift support for downhole tool recoveries

- Reduced rig dependency for heavy pulling operations
- Improved operational safety through hydraulic remote actuation
- Operational flexibility across diverse casing sizes and job types
- Efficiency gains with adjustable speed and high-capacity performance
